Eigen::CholmodSimplicialLDLT< MatrixType_, UpLo_ > Class Template Reference
Sparse linear algebra » Reference » Support modules » CholmodSupport module

Detailed Description

template<typename MatrixType_, int UpLo_ = Lower>
class Eigen::CholmodSimplicialLDLT< MatrixType_, UpLo_ >

A simplicial direct Cholesky (LDLT) factorization and solver based on Cholmod.

This class allows to solve for A.X = B sparse linear problems via a simplicial LDL^T Cholesky factorization using the Cholmod library. This simplicial variant is equivalent to Eigen's built-in SimplicialLDLT class. Therefore, it has little practical interest. The sparse matrix A must be selfadjoint and positive definite. The vectors or matrices X and B can be either dense or sparse.

Template Parameters
MatrixType_the type of the sparse matrix A, it must be a SparseMatrix<>
UpLo_the triangular part that will be used for the computations. It can be Lower or Upper. Default is Lower.

This class follows the sparse solver concept .

This class supports all kind of SparseMatrix<>: row or column major; upper, lower, or both; compressed or non compressed.

Warning
Only double precision real and complex scalar types are supported by Cholmod.
See also
Sparse solver concept, class CholmodSupernodalLLT, class SimplicialLDLT

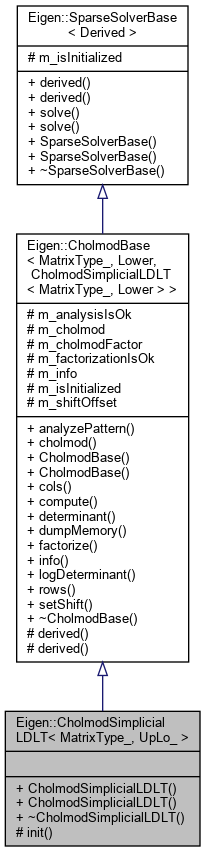

+ Inheritance diagram for Eigen::CholmodSimplicialLDLT< MatrixType_, UpLo_ >:

Additional Inherited Members

- Public Member Functions inherited from Eigen::CholmodBase< MatrixType_, Lower, CholmodSimplicialLDLT< MatrixType_, Lower > >
void analyzePattern (const MatrixType &matrix)

cholmod_common & cholmod ()

CholmodSimplicialLDLT< MatrixType_, Lower > & compute (const MatrixType &matrix)

Scalar determinant () const

void factorize (const MatrixType &matrix)

ComputationInfo info () const
 Reports whether previous computation was successful. More...

Scalar logDeterminant () const

CholmodSimplicialLDLT< MatrixType_, Lower > & setShift (const RealScalar &offset)

- Public Member Functions inherited from Eigen::SparseSolverBase< Derived >
template<typename Rhs >
const Solve< Derived, Rhs > solve (const MatrixBase< Rhs > &b) const

template<typename Rhs >
const Solve< Derived, Rhs > solve (const SparseMatrixBase< Rhs > &b) const

 SparseSolverBase ()

The documentation for this class was generated from the following file:
